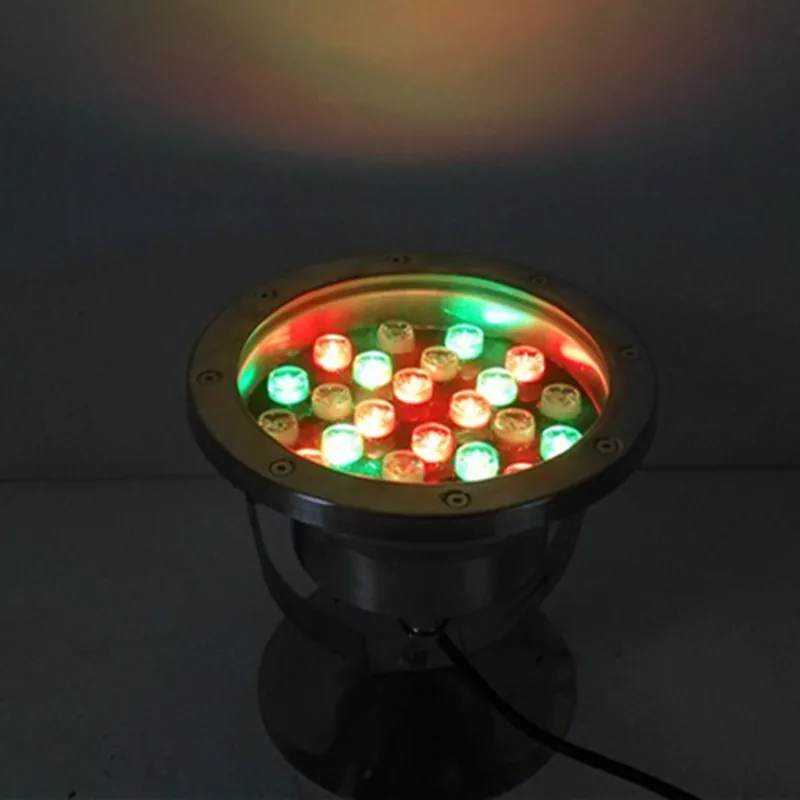

24W 12V 24V Waterproof IP68 Swimming Pool Led Underwater Light

Graphic
Detail

24W 12V 24V Waterproof IP68 Swimming Pool Led Underwater Light

power： 24W
input voltage： 12V/24V
Light Color： 2700-6000K/R/G/B
Customize： RGB/DMX512
size： ø185*204
angle： 15-120°
MOQ： 10
year warranty： 5

Parameters

power： 24W
input voltage： 12V/24V
Light Color： 2700-6000K/R/G/B
Customize： RGB/DMX512
size： ø185*204
angle： 15-120°
MOQ： 10
year warranty： 5

Product Detail

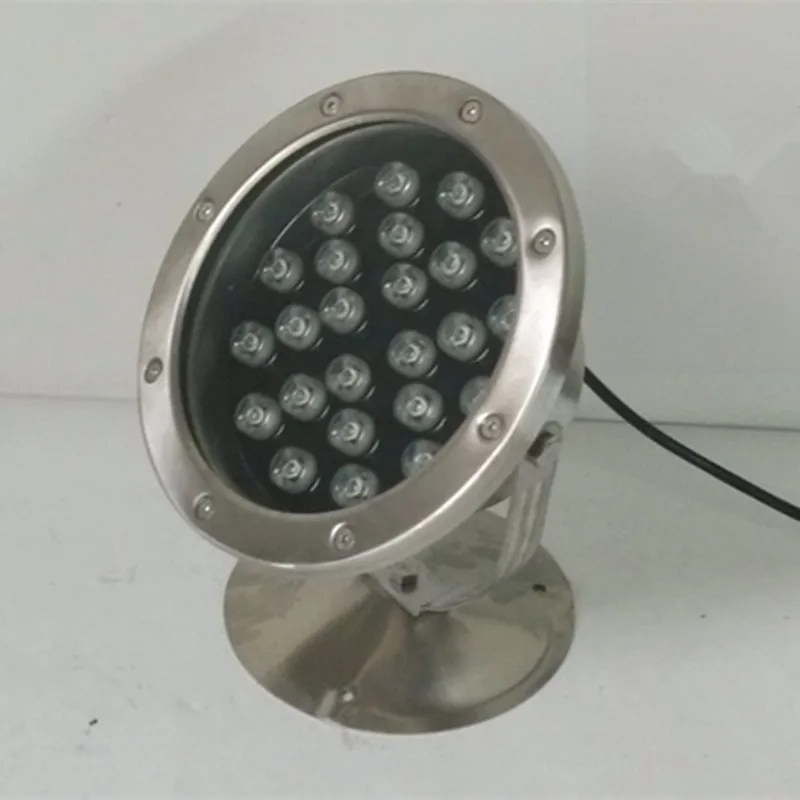

Product Name	LED Swimming Pool Light
Power	24W
LED Chip	Bridgelux
Input Voltage	12VDC / 24VDC
CRI	>80
Lumen Efficiency	>85LM/W
Beam Angle	15 / 30 / 45 / 60 / 120
Emitting Color	Single Color, Daul Color, RGB, RGBW
Lifetime	50000Hrs
Ingress Protection	IP68
Product Size	ø185*204
Net Weight	1.80KGS/PC
Length of Cable	50CM, if need longer, please let me know

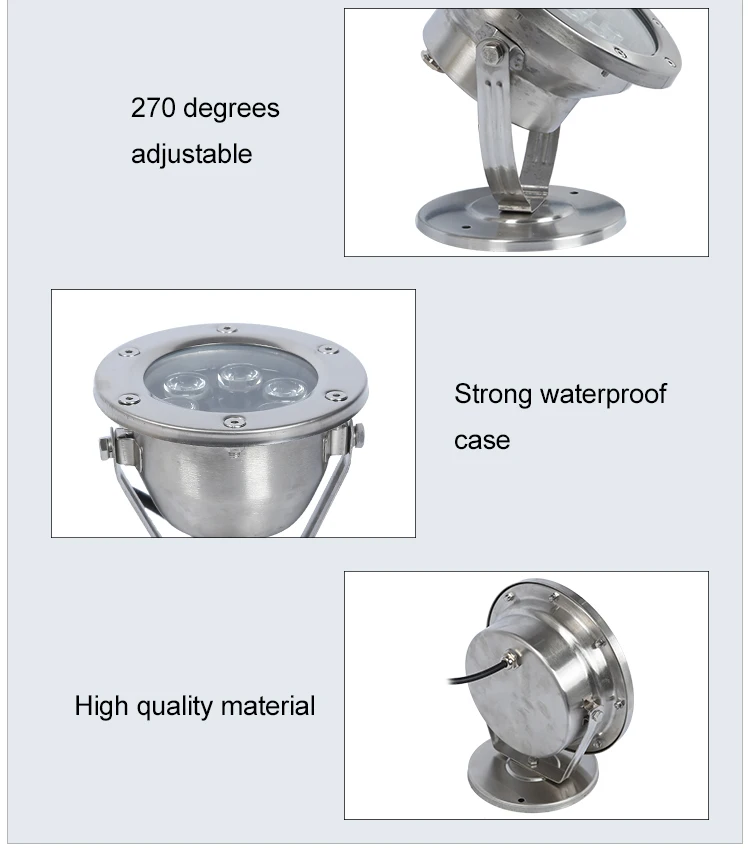

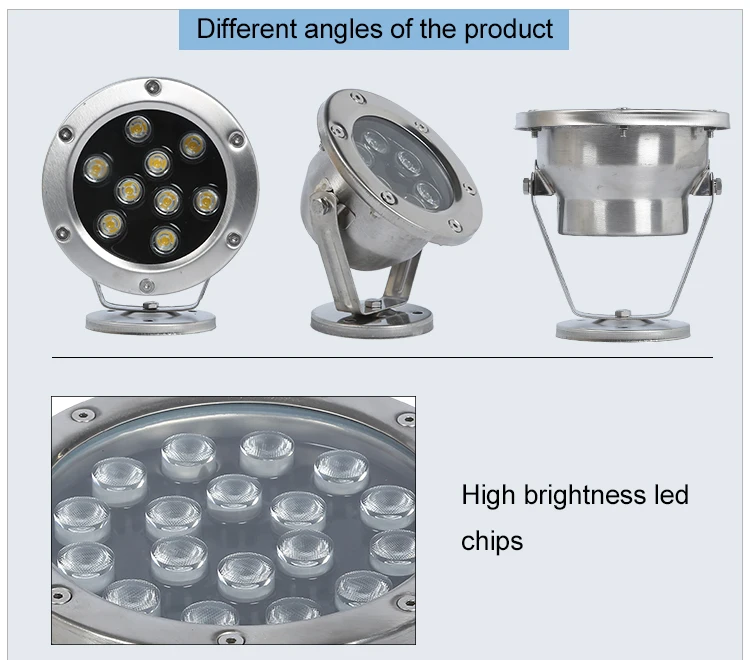

1. Housing: 304#(316# is available) stainless steel;
2.Cover:304#(316# is available) stainless steel;
3.Glass: Tempered Glass T=8mm
4.Lens:Optional lens, Efficiency ≥ 85%
5.Waterproof Cable gland:IP68,PG-9 Copper and nickel coated,End-cap and housing are silicone sealed
6.MPCB: Excellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0W/mk
7.waterproof seal:glass and housing are silicone sealed
8.Operating temperature:-40~45 centigr
